TOOLS / ANCILLARY
Scaffold Tag and Holder

To indicate the safety level of scaffolding during erection, after completion and also during dismantling. Used in verification and tracking for safety of working scaffold structure by scaffold supervisors and inspectors.

Specification
  • Re-writable, re-usable, Durable

  • Packing (1box): 10 Holders + 10 Tags

  • Brand : DURA, MALAYSIA

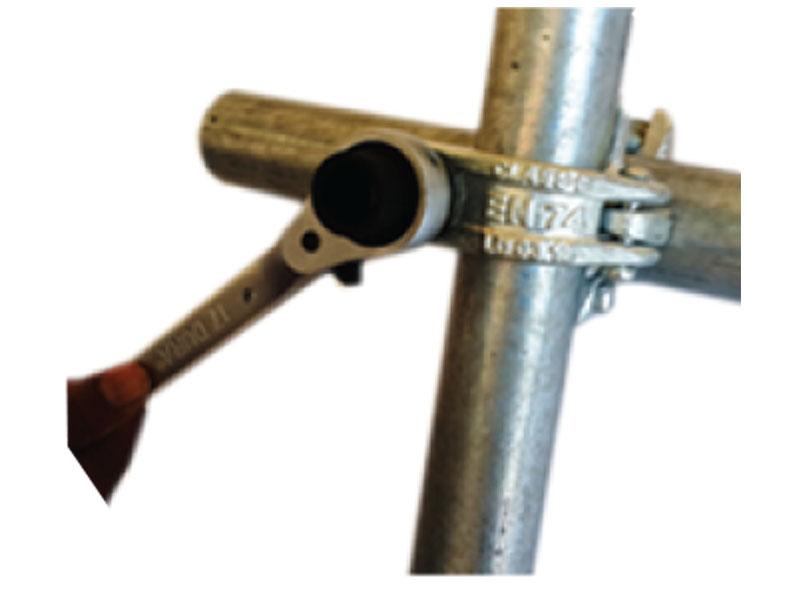

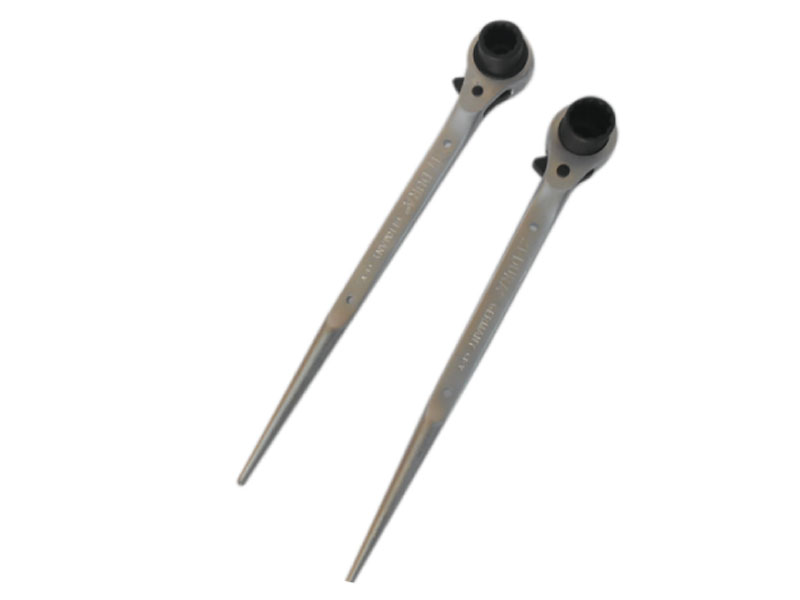

Scaffolder Ratchet

Scaffold Ratchet is specially made for use on BS/EN scaffold couplers. It is made from high quality chrome vanadium steel and heat treated for durable & longer life span.

Specification
  • Standard: EN74

  • Size : 17/21MM and 19/21 MM

  • Brand: DURA, MALAYSIA

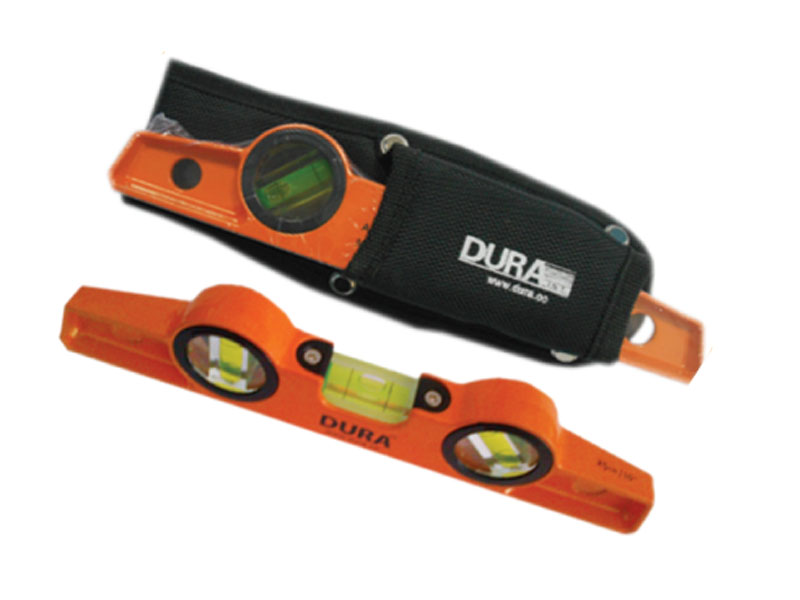

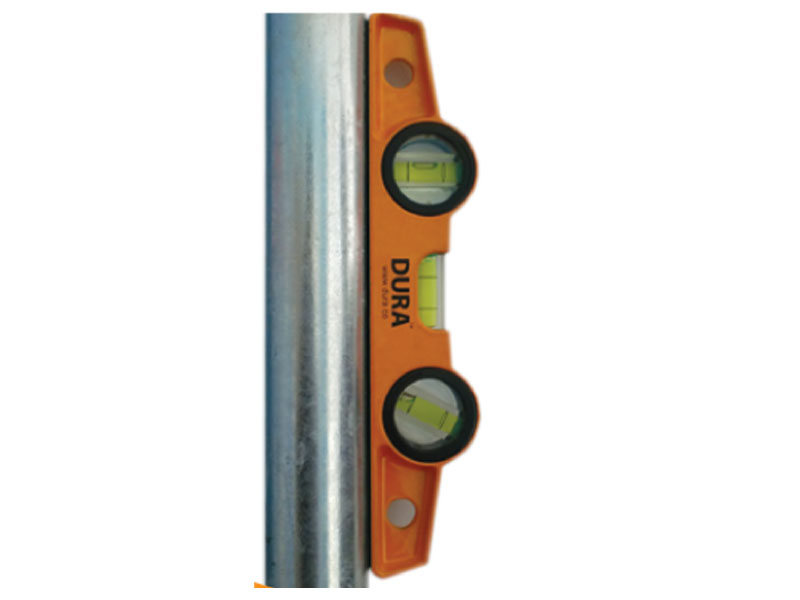

Scaffold Spirit Level

Scaffold Spirit level ( Magnetic ) made of Aluminium and comes with a pouch, triple indicator. It is specially designed to be used on all type of scaffolding for easy and accurate level reading

Specification
  • Size : 10”/25 cm

  • Brand : DURA, MALAYSIA

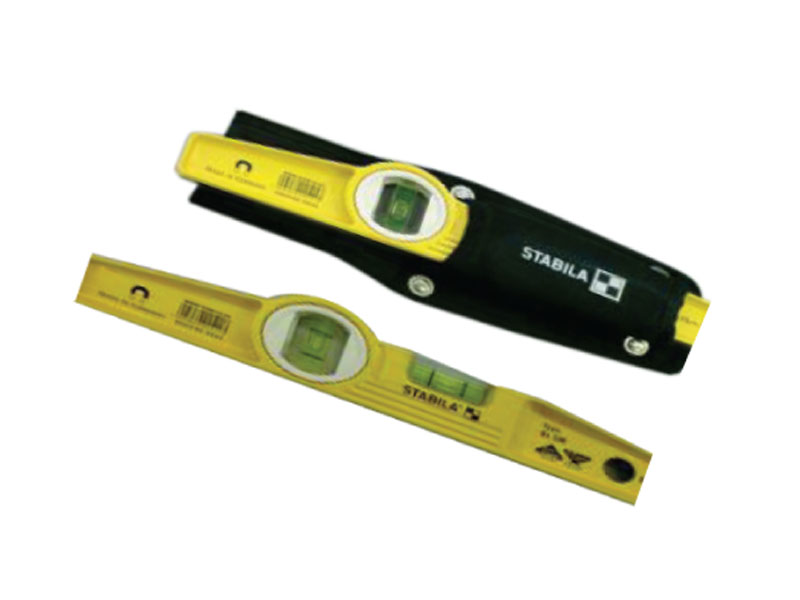

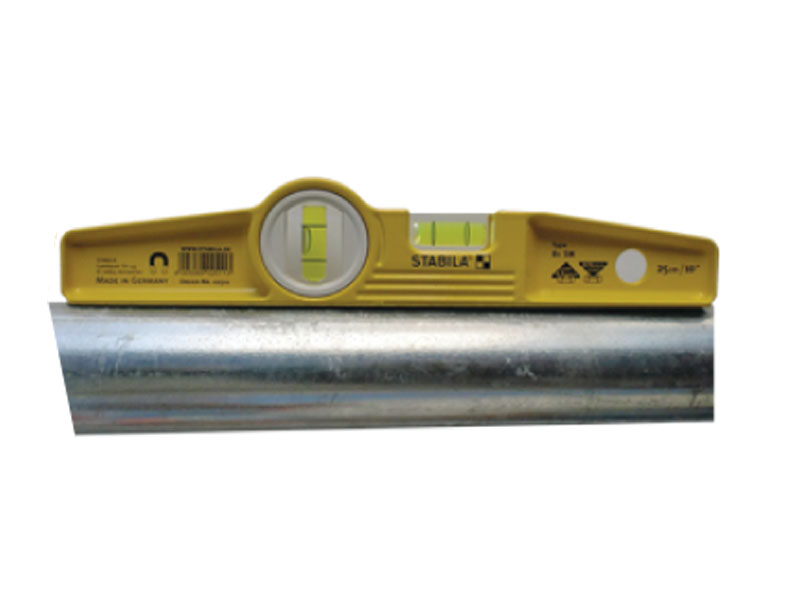

Stabila Spirit Level

Scaffold Spirit Level ( Magnetic ) made of Aluminium and comes with a double line indicator. It is specially designed to be used on all types of scaffolding for easy and accurate level reading. It comes with a level pouch.

Specification
  • Size : 10”/25 cm

  • Brand : STABILA, GERMANY

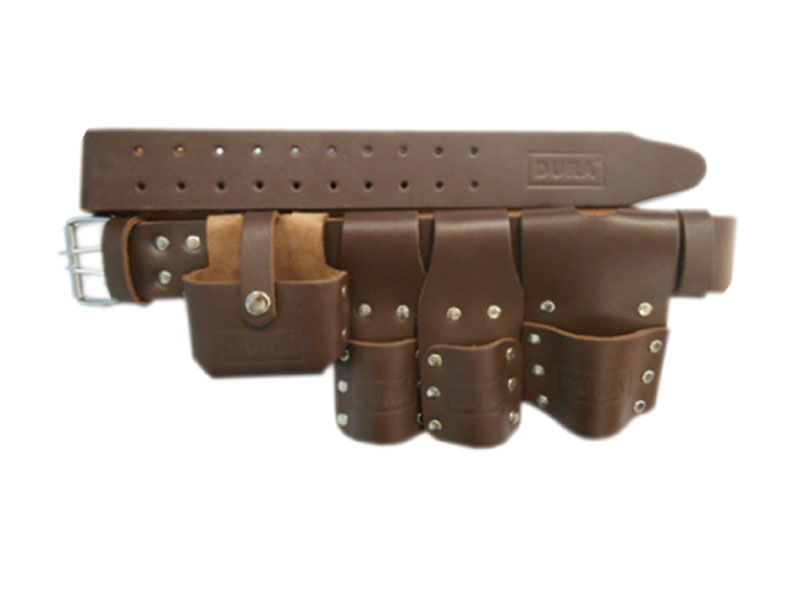

Full Set Scaffolder’s Leather Belt

Made of best quality leather for strength, durability and longer life span.

Accessories
  • Leather Belt

  • Spanner Pouch / Holder

  • Ratchet Pouch / Holder

  • Tape Pouch / Holder

  • Spirit Level Pouch / Holder

  • Brand: DURA, MALAYSIA

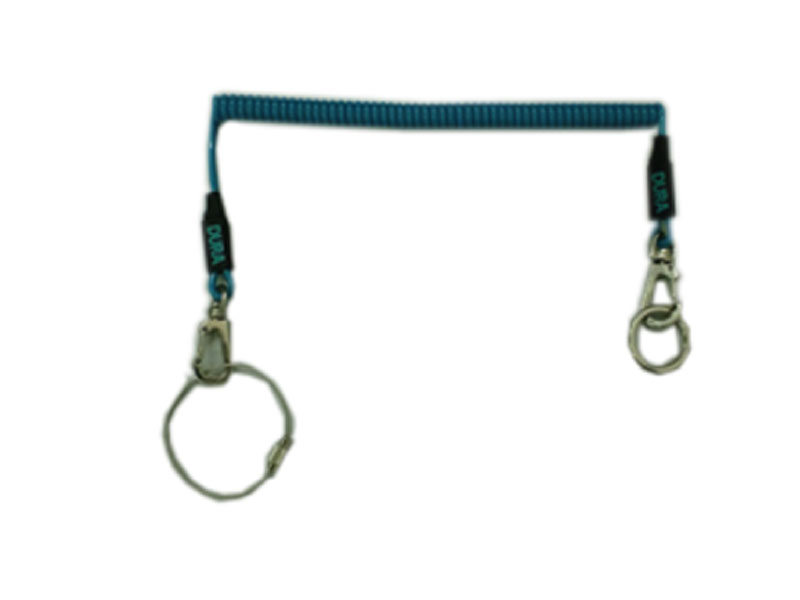

Tools Lanyard

Used by scaffolders to secure tools from falling down. Scaffold tools must have holes at the edge in order to be used with tools lanyard.

Specification
  • Max Stretched Length : 1450mm

  • Normal length : 400mm

  • Diameter of Cord : 3.0mm

  • Diameter of Stainless Wire Core : 1.0mm

  • Brand : DURA, MALAYSIA

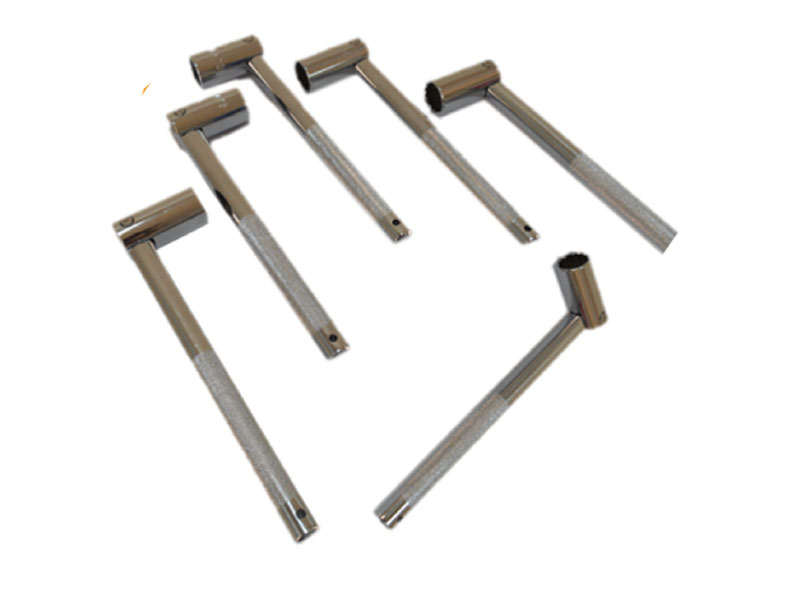

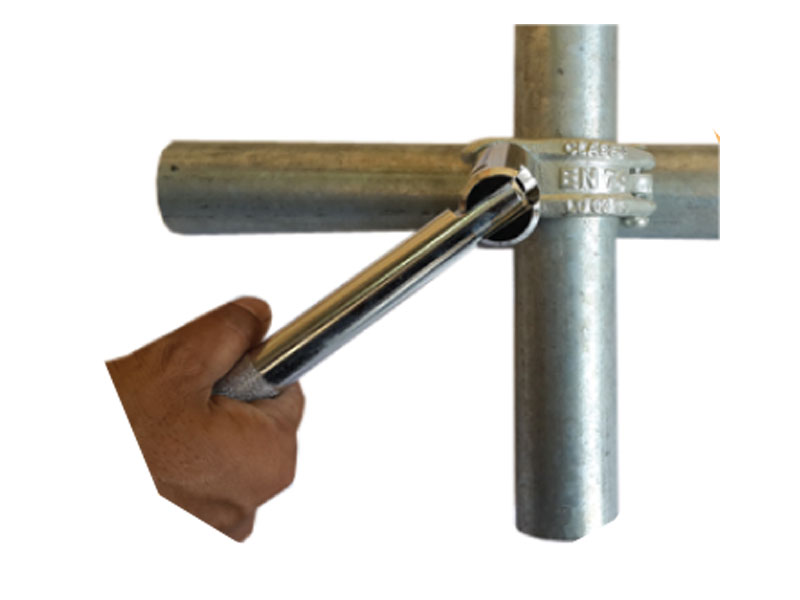

Scaffolder Spanner

Scaffold spanner is specially made for use on BS/EN scaffold coupler and usable to fix 21mm size nut. It is made from high quality chrome vanadium steel and heat treated for durability & longer life span. Head is rotatable to 180 degree with hole on end of spanner tail to attach with tool lanyard.

Specification
  • Size : 7/16”

  • Brand : DURA, MALAYSIA

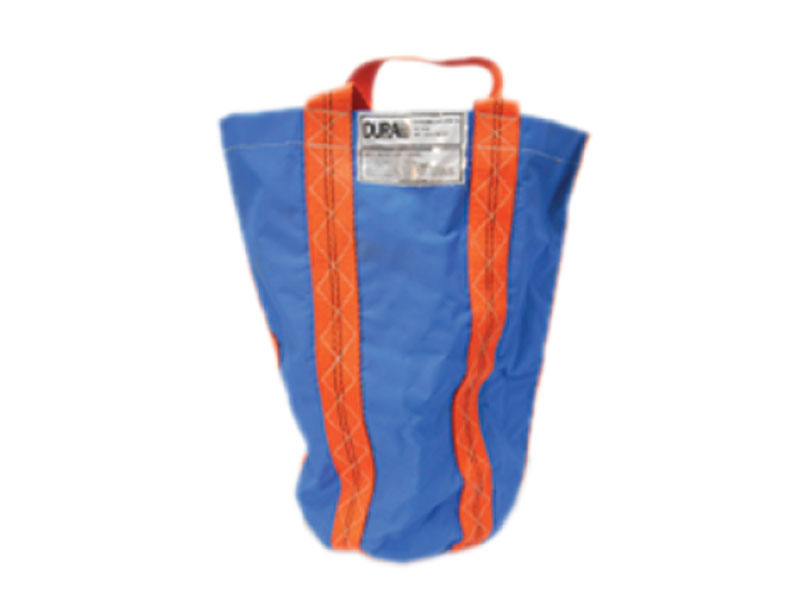

Heavy Duty Scaffolding Clamp Lifting Bag

Used for lifting scaffold clamps to upper heights, manufactured from tough woven polypropylene. Labelled with safety instructions / handling.

Specification
  • Bag Size : 33cm ( Dia ) x 56cm ( Height ) ( 50kg ): 28cm ( Dia ) x 50cm ( Height ) ( 30kg )

  • Fabric : 100% Polyester plain weave fabric x 390g/m2

  • Base : 100% Polyester plain weave layers fabric x 0.45mm

  • Safe Working Load ( S.W.L ) : 50KG & 30KG

  • Brand : DURA, MALAYSIA

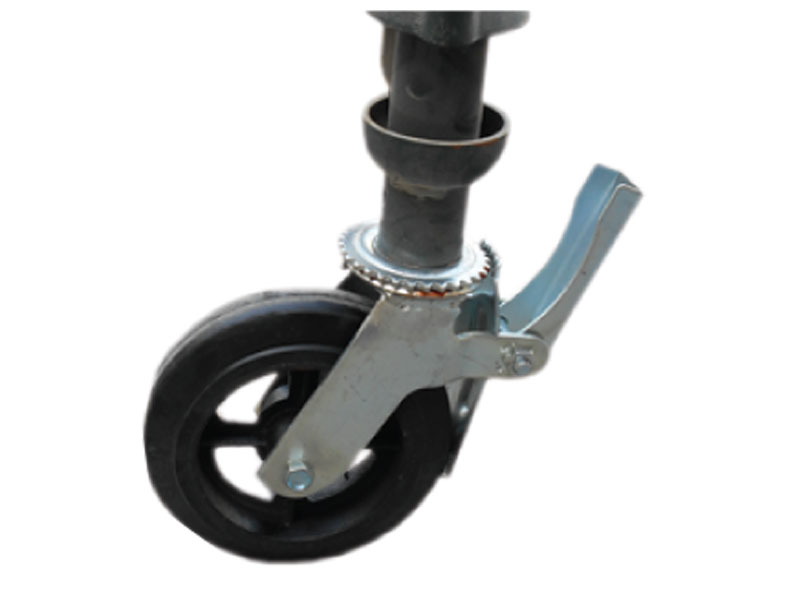

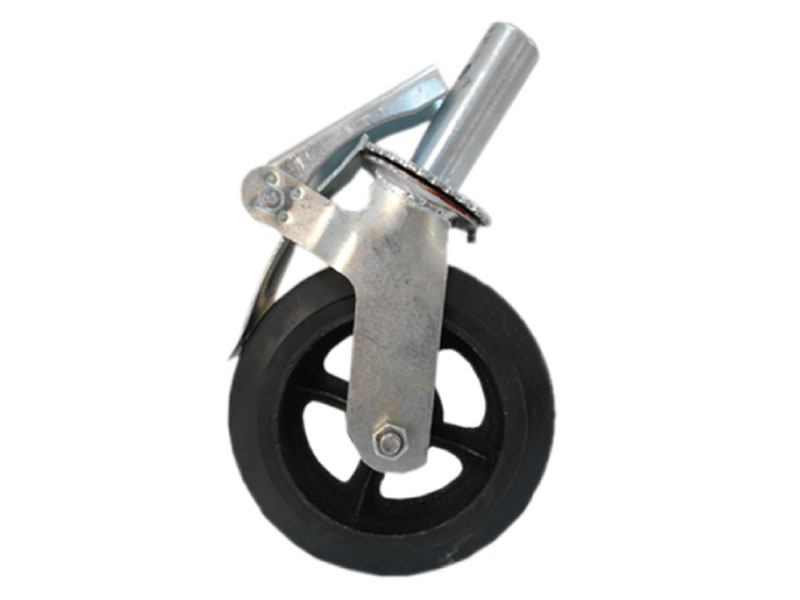

Scaffold Castor Wheel

Castor Wheel can be used with 48.3mm outside diameter scaffold tube and with various system scaffolds. Wheels can be firmly secured to the tube to prevent displacement.

Specification
  • Size : 8”

  • Available : Male Type

  • Capacity : Light/ Heavy Duty

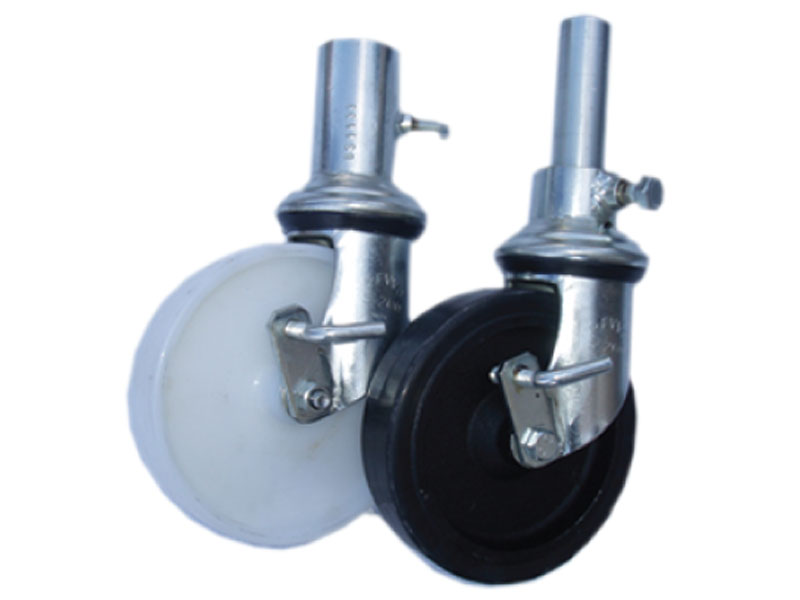

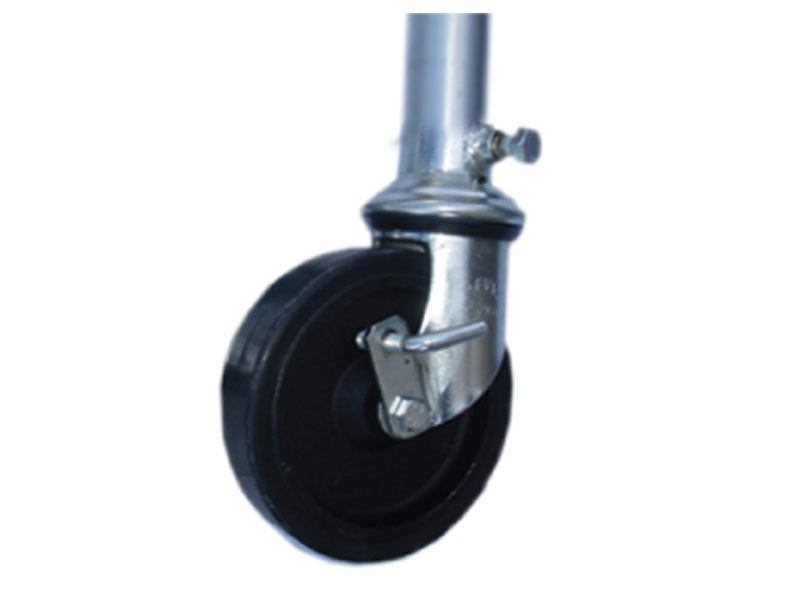

Scaffold Castor Wheel ( Revvo Type )

Castor Wheel can be used with 48.3mm outside diameter scaffold tube and with various system scaffolds. Wheels can be firmly secured to the tube to prevent displacement.

Specification
  • Size : 8”

  • Standard : BS1139 Part 3:1994

  • Available : Male / Female Type

  • Wheel Type : Rubber, Nylon, Polyurethane( PU ), Cast Iron

  • Static Safe working Load : 500 - 730kg

  • Brand : REVVO ( UK )

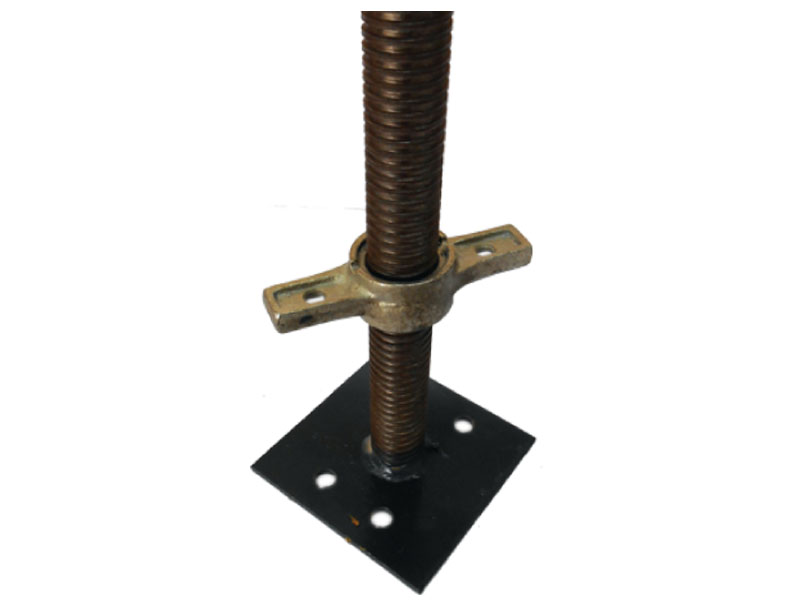

Adjustable Base Jack

Castor Wheel can be used with 48.3mm outside diameter scaffold tube and with various system scaffolds. Wheels can be firmly secured to the tube to prevent displacement.

Specification
  • Height : 600mm x 150mm

  • Thickness : 5mm x 150mm

  • Standard : BS EN74-1:2005 / AS/NZS 1576.2-2009

  • Finishing : Painted/Galvanized

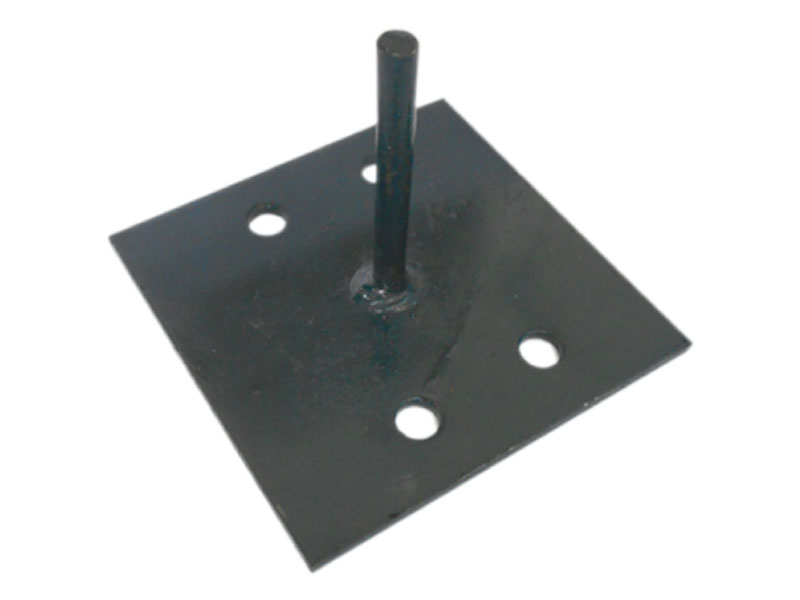

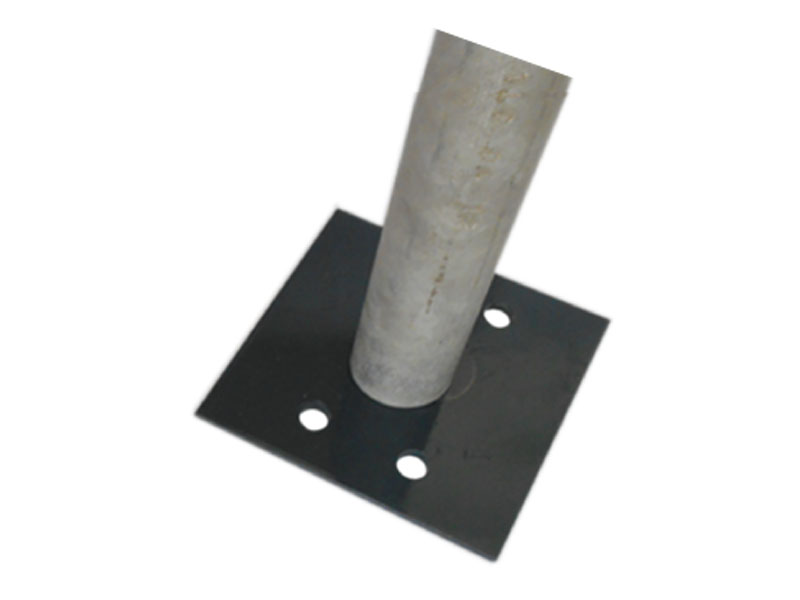

Base Plate

A non-adjustable base plate used to distribute the load of scaffolding structure. Inserted at the base of standard.

Specification
  • Plate Size : 150mm x 150mm

  • Plate Thickness : 5mm / 6mm

  • Rod Size : 12mm ( Dia ) x 100mm ( height )

  • Standard : EN74-3:2007

  • Finishing : Painted / Galvanized

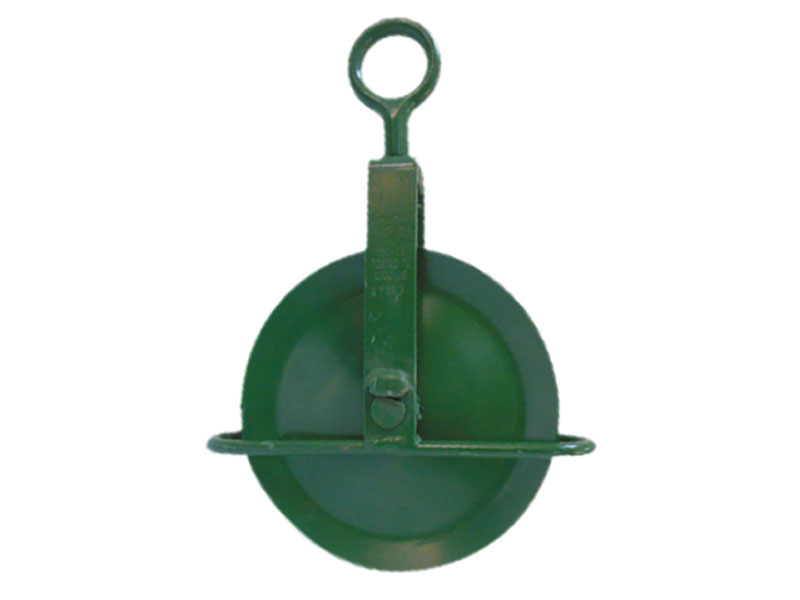

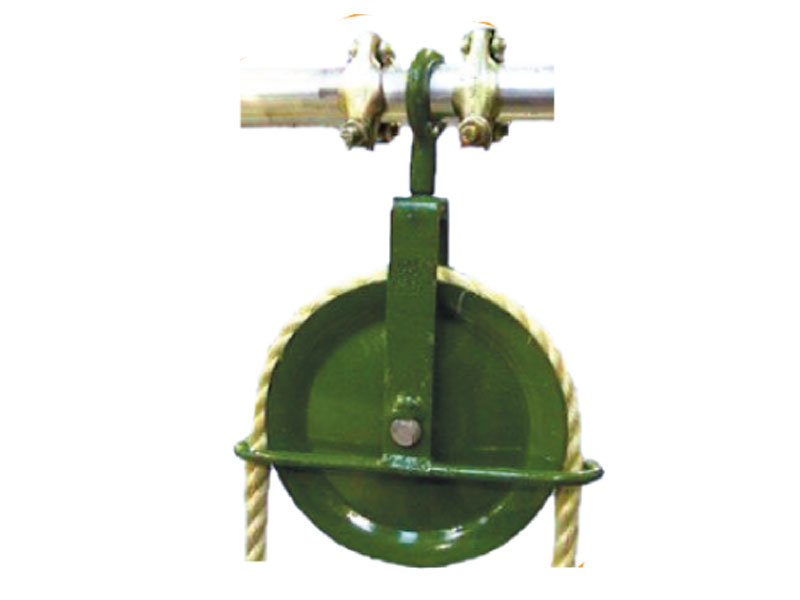

Gin Wheel Pulley

The Gin wheel offers an alternative pulley system which is safe, efficient and easy to use. It consist of a lubricating pivot wheel for use with 19mm fall rope and is secured by a drop forged eyebolt that fits over a conventional scaffold tube. All Gin Wheel have unique identification number which ties up with in house test certification.

Specification
  • Size : 254mm Wheel

  • Standard : BS1692 ( Test certificates supplied )

  • Safe working load: 250 kg ( Tested to four time’s Safe working load )

  • Weight : 5.0kg

  • Finishing : Painted

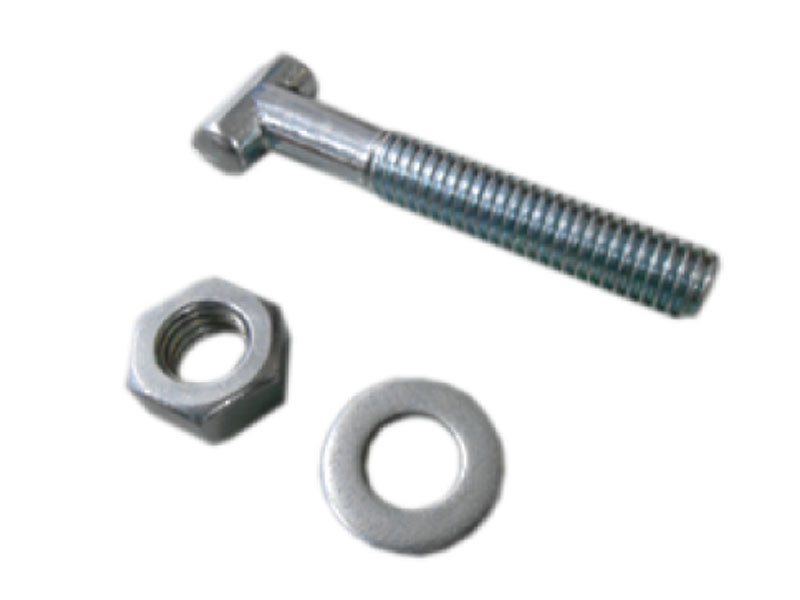

T-Bolt With Nut and Washer

Scaffold T-Bolt comes with nut and washer usedfor drop forged couplers. It is specially made fromcarbon steel, 8.8 grades heat treated.

Specification
  • Length : 86mm

  • Nut Size : 21mm

  • Finishing : zinc Plated / Hot Dipped Galvanized

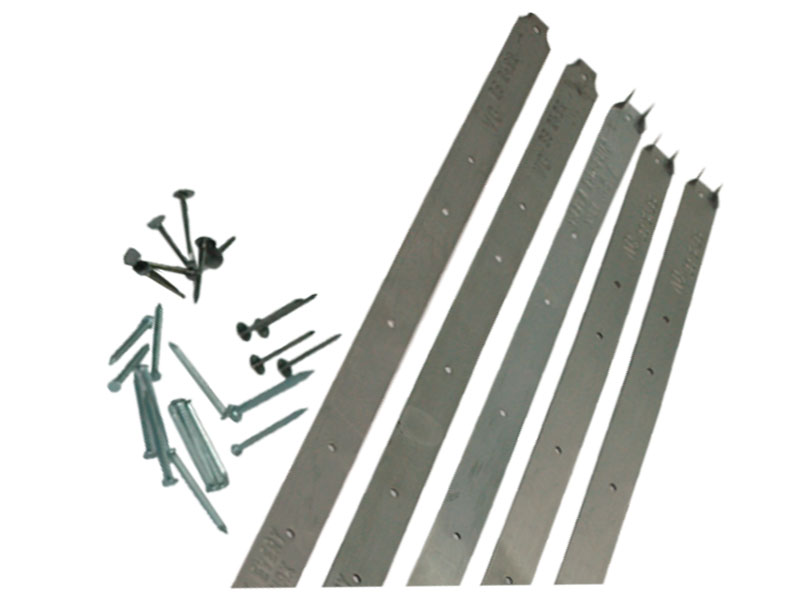

Scaffold Board Steel End Band

Pre-galvanized scaffold end band to fix the edge of scaffold wooden board to prevent the board from splitting and the board steel end band are fixed using galvanized cloud nails.

Specification
  • Size : 546 mm x 25mm x 0.7mm

  • Standard : BS729

  • Finishing : Pre Galvanized

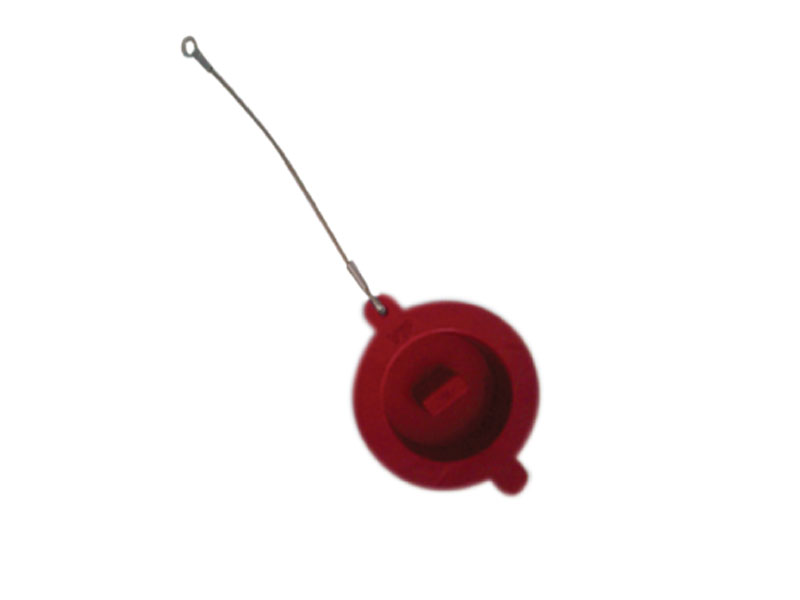

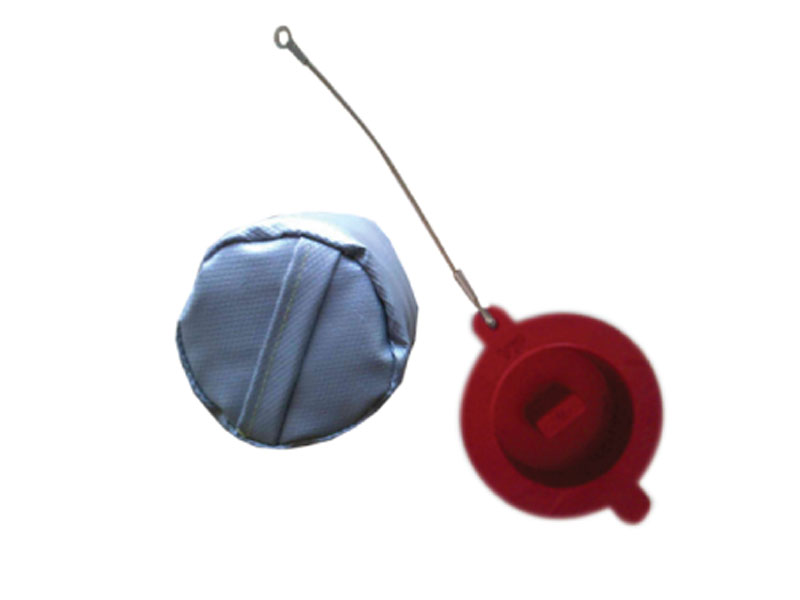

Vessel Inspection Plug

It makes non-destructive vessel inspection possible and more cost efficient. Vessel Inspection plugs help to prevent Corrosion Under Insulation ( C.U.I ) by providing weather-tight seal.

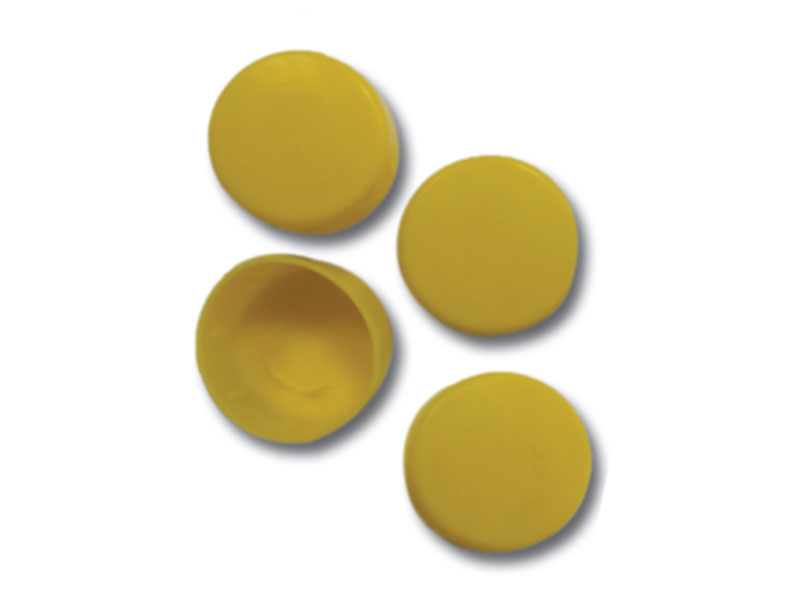

Tube End Cap

To protect the users from injuries scaffold protruding pipe-ends. Simple to fix and compliance to safety requirements. Highly visible colour and fits any type of scaffold tubes of 48.3mm diameter.

Specification
  • Size Fit : 48.3mm ( Tube Diameter )

  • Finishing : HDPE

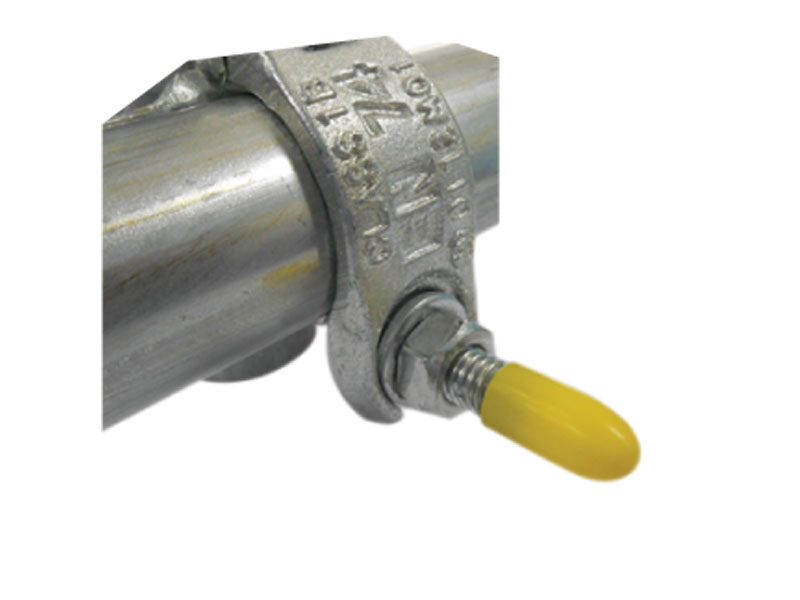

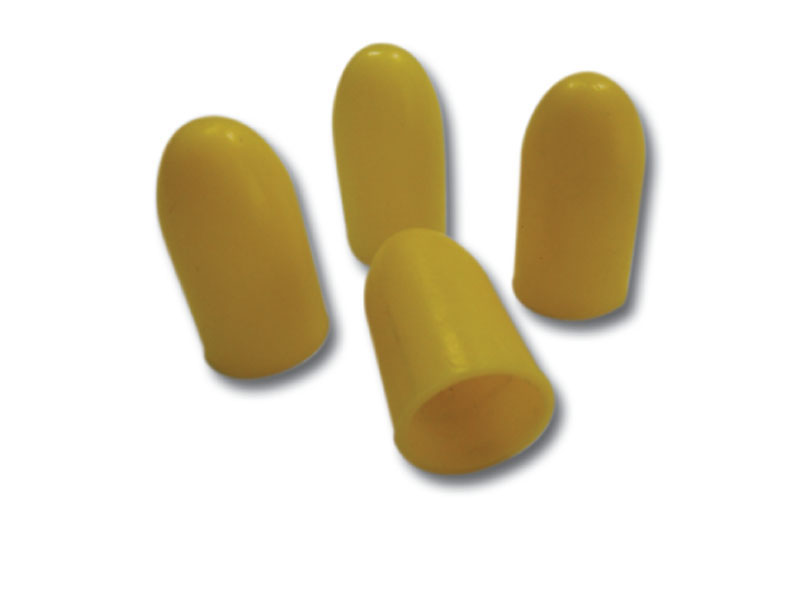

Fitting Cap

To protect the users from injuries against scaffold ( also available in cut length ) fittings end / nut. Highly visible colour and it’s any type of scaffold fittings.

Specification
  • Size Fit : 11.5mm ( T-Bolt Nut )

  • Finishing : HDPE

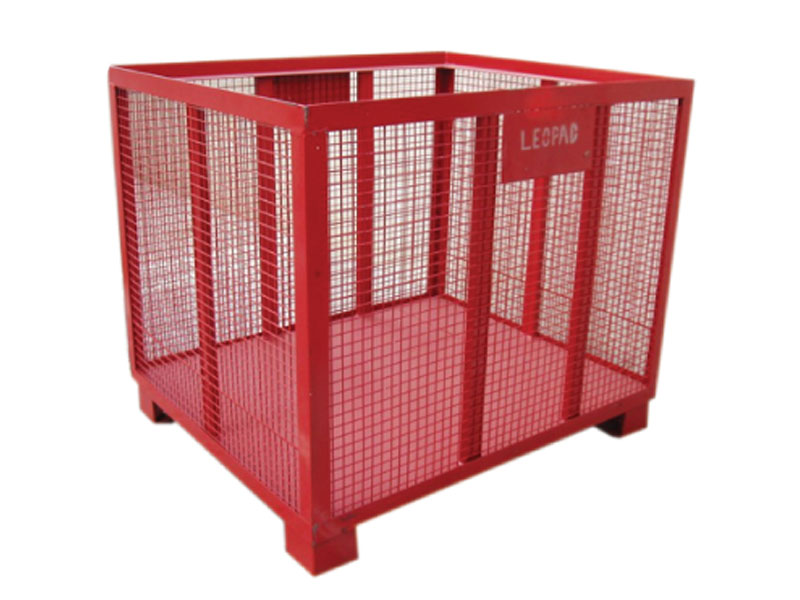

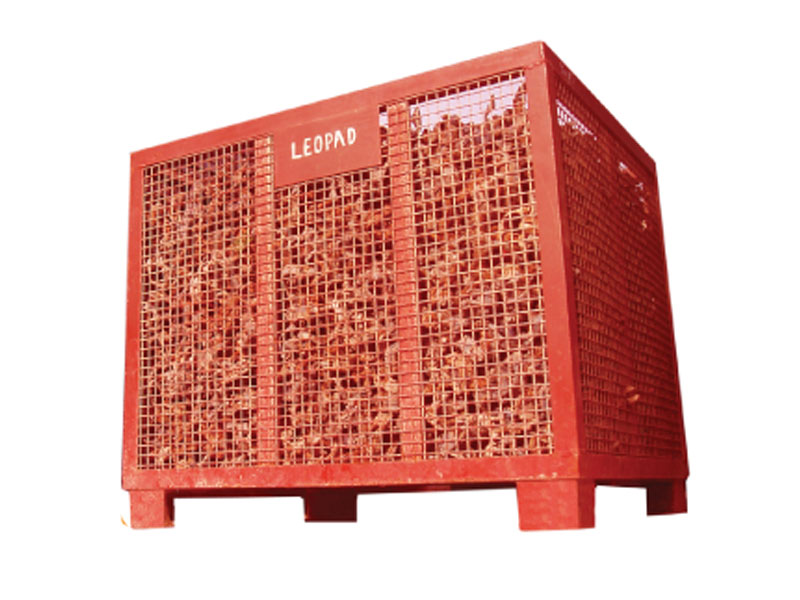

Fitting Bin

Specially built from strong steel channels. These closed sided stilages are designed for storage and transportation of scaffold fittings and other smaller ancillary components.

Specification
  • Finishing : Painted / Galvanized

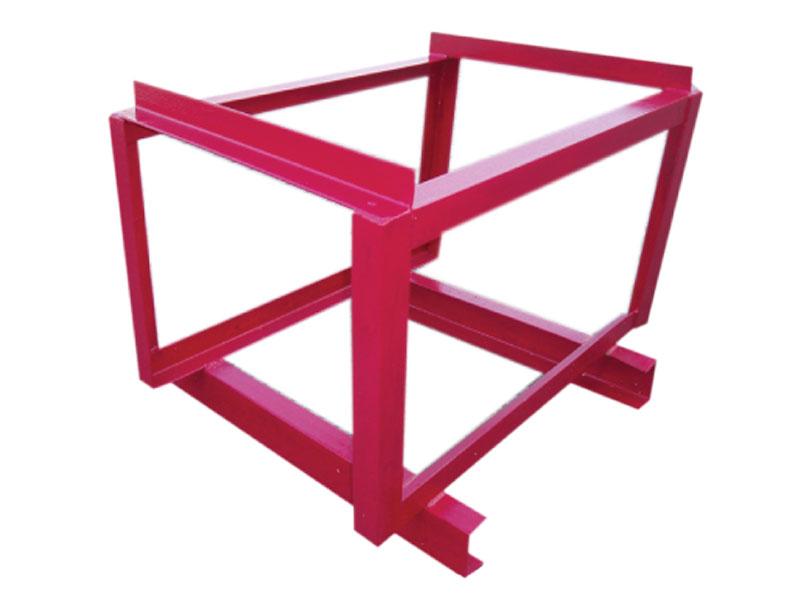

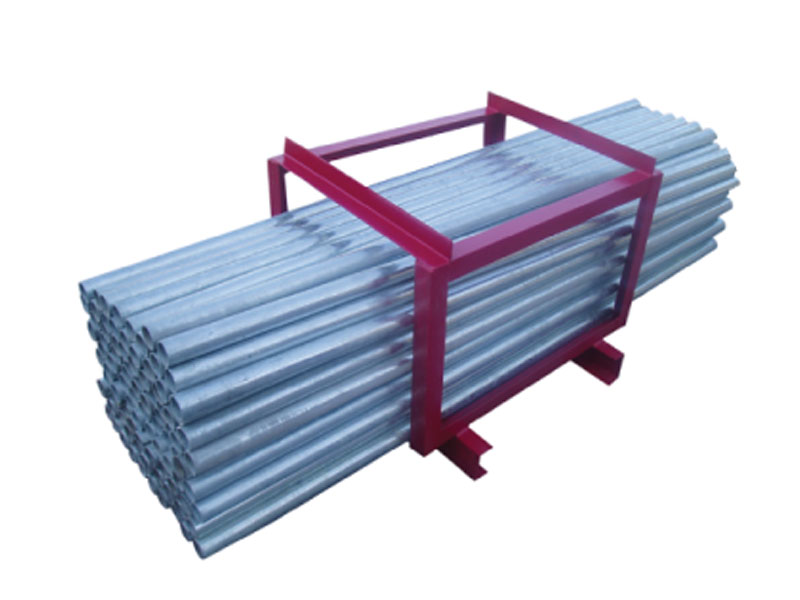

Tube Rack

Specially built from strong steel angle channels. These closed sided stilages are designed for storage and transportation of scaffold tubes and other scaffolds elements.

Specification
  • Finishing : Painted / Galvanized

Ladder Access Gate

Ladder gates secure access points on the scaffold to prevent falls from height. The essential way to / provide secure ladder access to scaffolding where external ladders employed.

Specification
  • Steel gate with high variability finishings

  • Reversible to suit all opening with in toe board

  • Spring operated and fits 750mm opening

  • Easy installation using standard scaffold spanner

  • Standard: BS4211

  • Finishing: Painted / Galvanized / Powder Coated
