SCAFFOLD FITTINGS

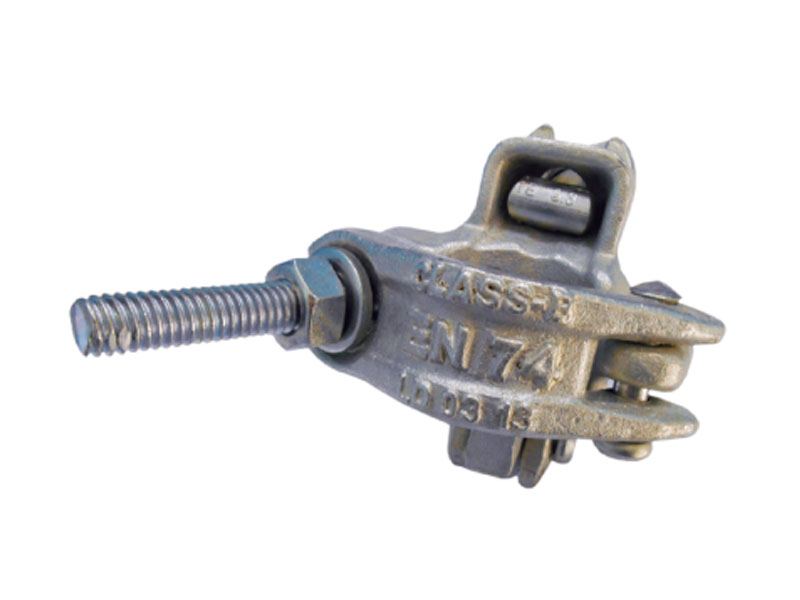

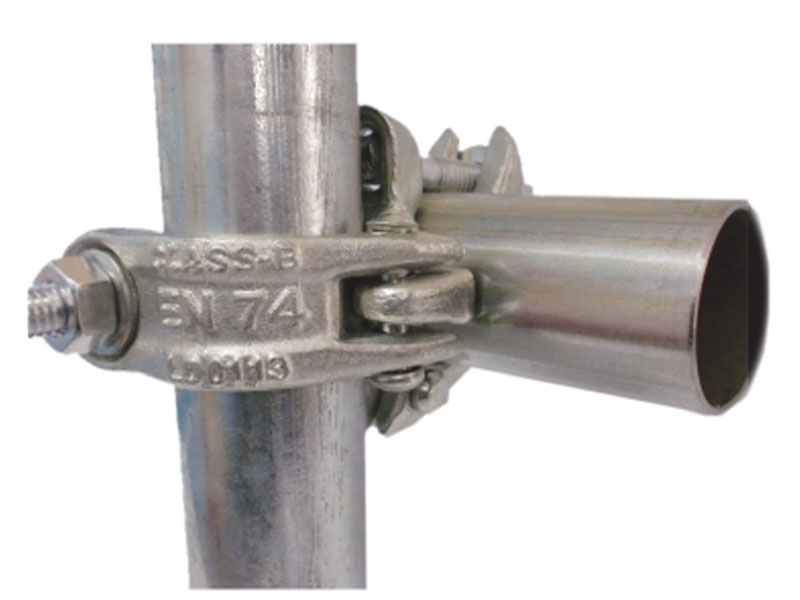

Drop Forged Double Coupler

This scaffold fitting connects two scaffold tubes at right angle. It is a load bearing fitting enable to resists both slip and distortion. Precision made centres or fitting’s body ensure a 90 degree connection

Specification
  • Size: 48.3 mm

  • Standard: BS1139 / EN74 Class B / EN74-1 Class B / AS1576.2-91

  • Finishing: Zinc Plated / Hot Dipped Galvanized

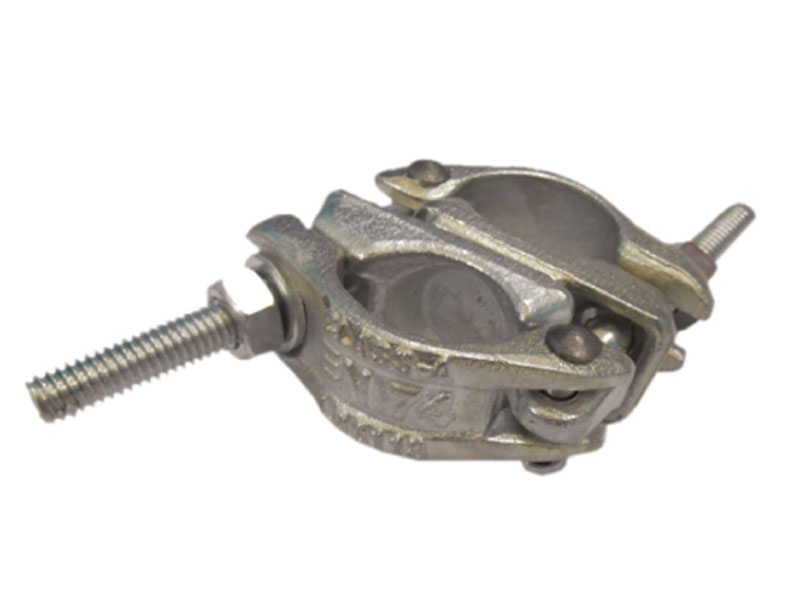

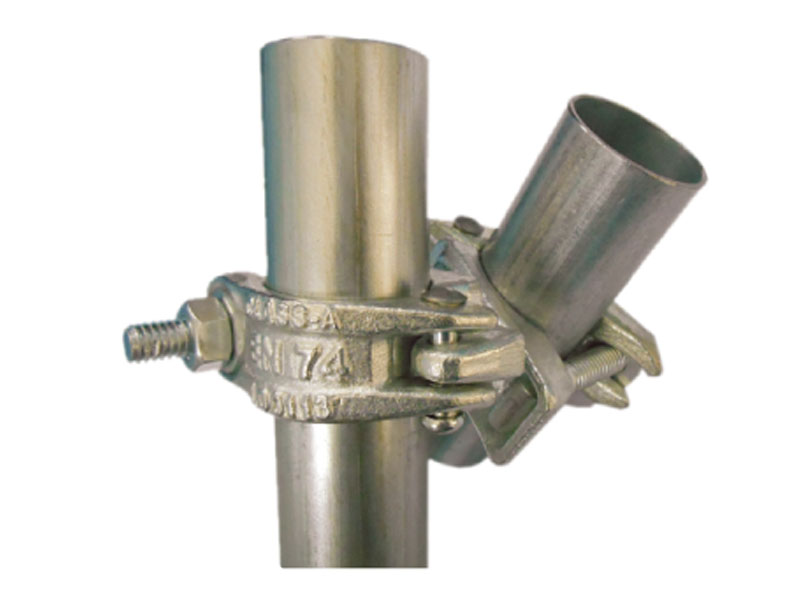

Drop Forged Swivel Coupler

This scaffold connects two scaffold tubes at anyangle to provide a ledger brace, facade or similar bracing to a scaffold structure. It is a load bearing fitting

Specification
  • Size: 48.3 mm

  • Standard: BS1139 / EN74 Class B / EN74-1 Class B / AS1576.2-91

  • Finishing: Zinc Plated / Hot Dipped Galvanized

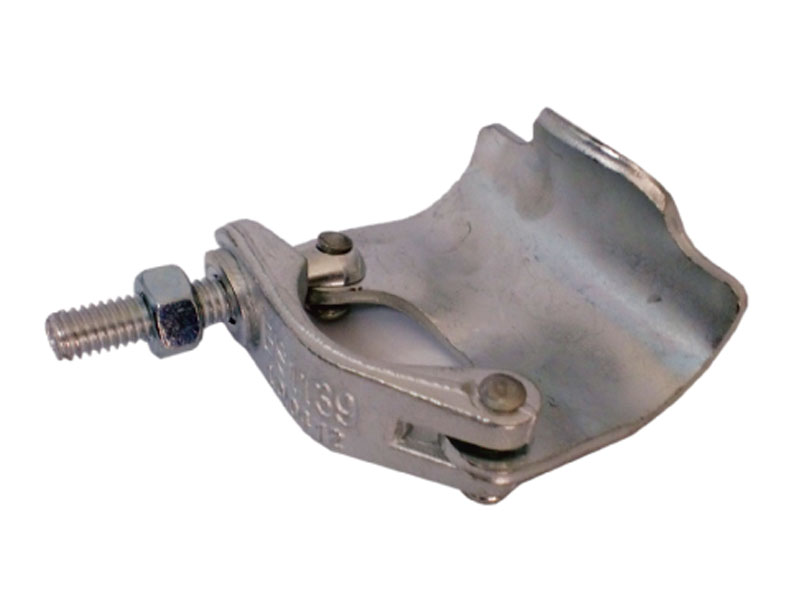

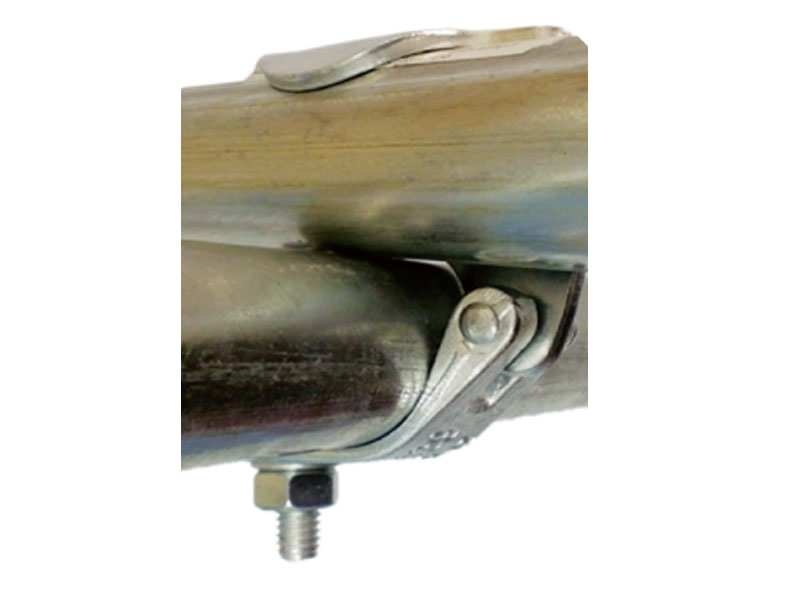

Drop Forged Putlog Coupler

This scaffold fitting connect two scaffold tubes at right angle. It is used to connect transom tubes for the support of the scaffold boards and considered tubes non-load bearing fitting

Specification
  • Size: 48.3 mm

  • Standard: BS1139 / BS1139 - 2.2 / AS1576.2-92

  • Finishing: Zinc Plated / Hot Dipped Galvanized

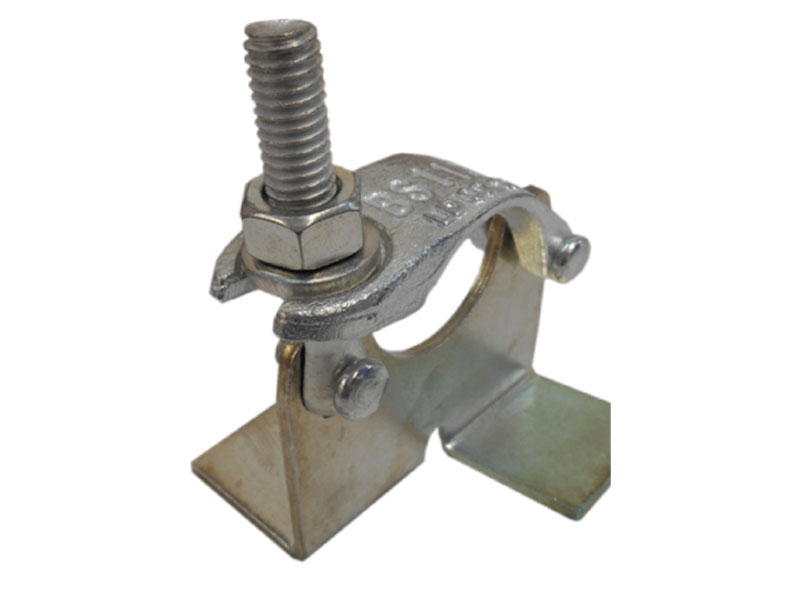

Board Retaining Coupler

Boards are quickly locked in right position, providing height resistance to both lateral and upward movement. The fitting should be used on scaffolds exposed positions where uplift maybe expected on board platforms.

Specification
  • Size: 48.3 mm

  • Standard: EN74 Class B / EN74-1 Class B / AS1576.2-91

  • Finishing: Zinc Plated / Hot Dipped Galvanized

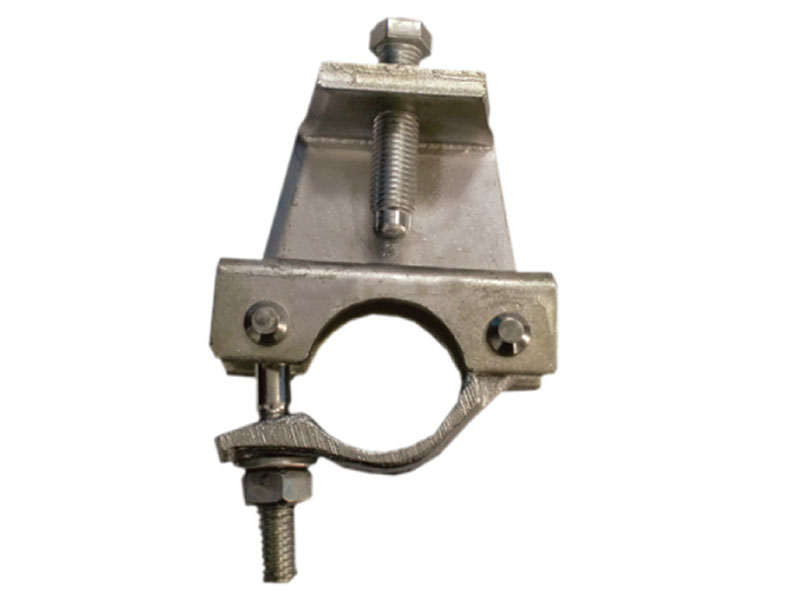

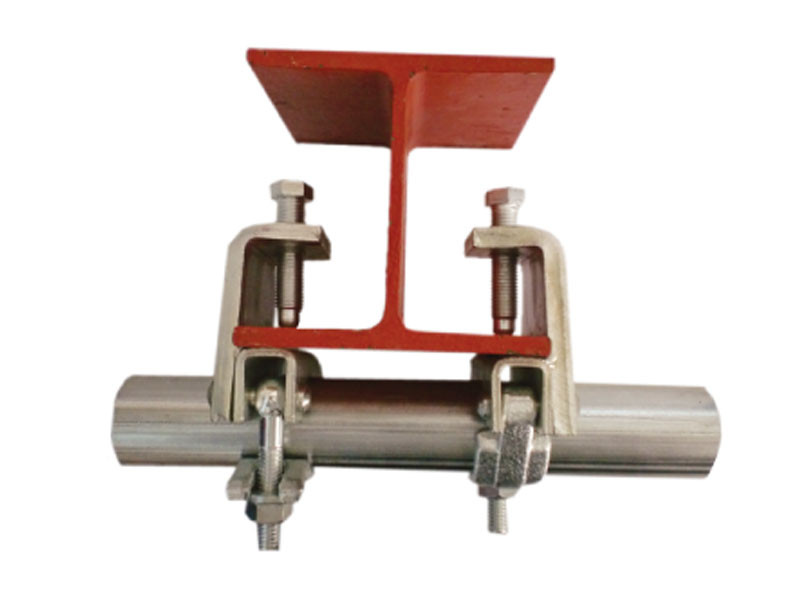

Beam Clamp / Girder Coupler Fixed Type

This scaffold fitting connects a single scaffold tube at right angle to most steel sections. It can accommodate steel flanges beam ( I-Beam ) with one on each opposite flanges up to 42mm thickness and should be used in pairs.

Specification
  • Size: 48.3 mm

  • Standard: BS1139 / BS1139 - 2.2 / AS1576.2-91

  • Finishing: Zinc Plated / Hot Dipped Galvanized

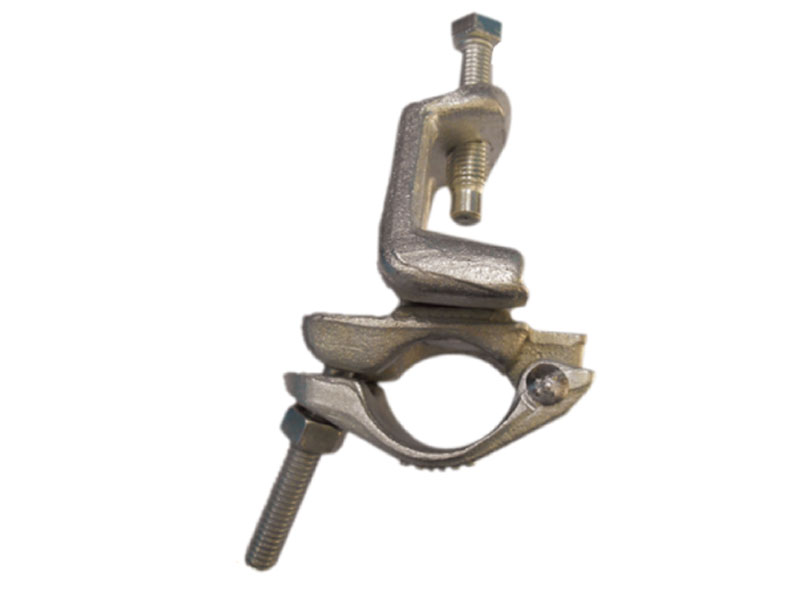

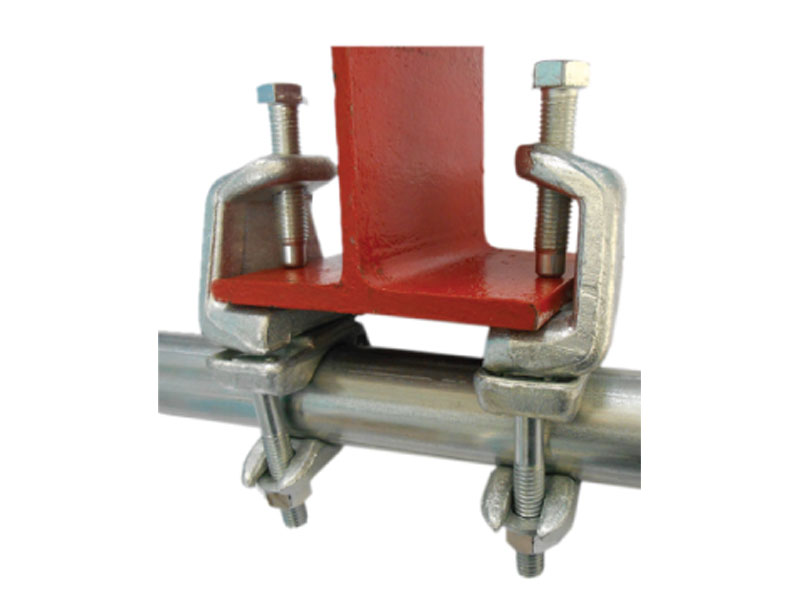

Beam Clamp / Girder Coupler Swivel Type

This fitting provides a rotating coupling of a scaffold tube to an “I” beam girder and must be used in pairs with one on each opposite flanges.

Specification
  • Size: 48.3 mm

  • Standard: BS1139 / BS1139 - 2.2 / AS1576.2-91

  • Finishing : Zinc Plated / Hot Dipped Galvanized

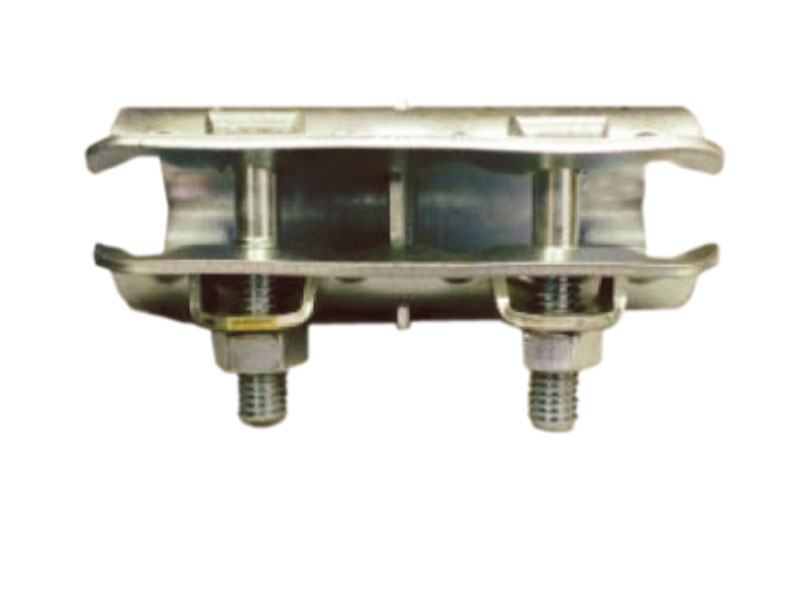

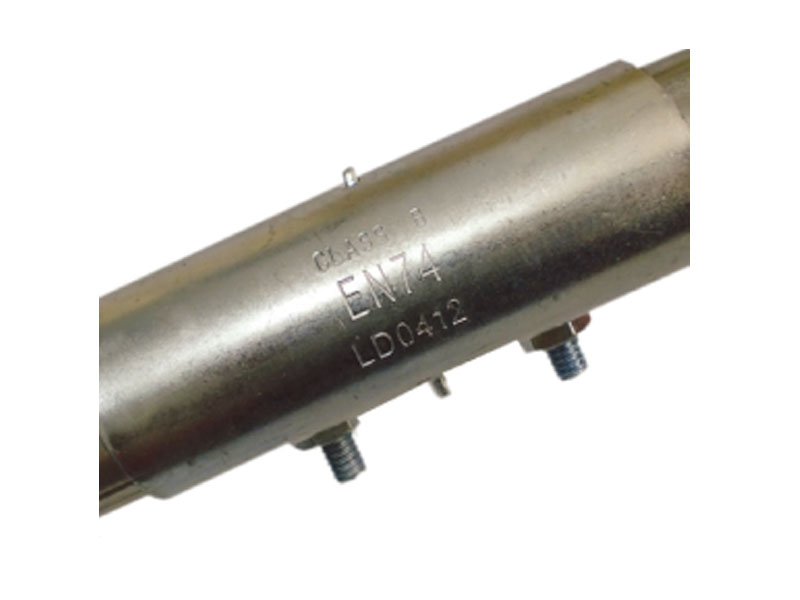

Pressed Steel Sleeve Coupler

This scaffold fitting connects two scaffold tubes at externally. A centre steel divider ensures an equal insertion of each tube. Fitting can be used where tension joints are required particularly useful for long bracing tubes.

Specification
  • Size: 48.3 mm

  • Standard: BS1139 / EN74 Class B / EN74-1 Class B / AS1576.2-91

  • Finishing: Zinc Plated / Hot Dipped Galvanized

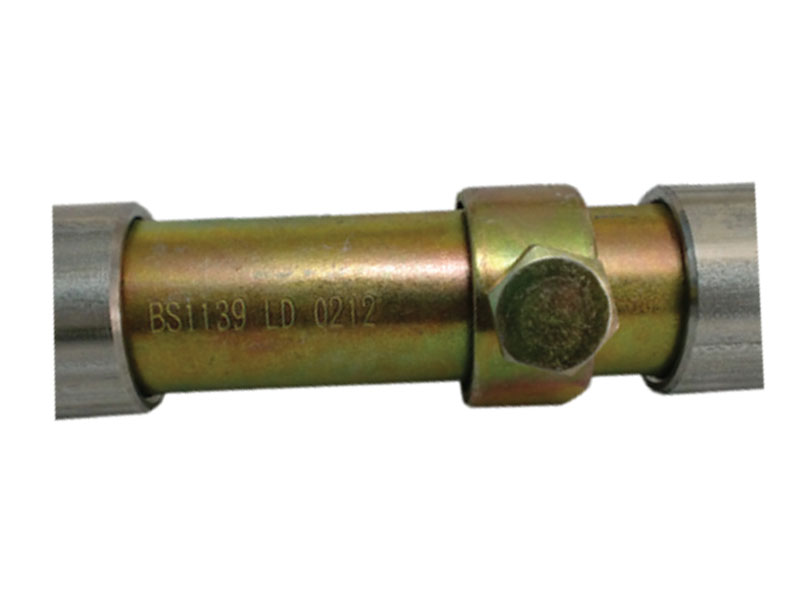

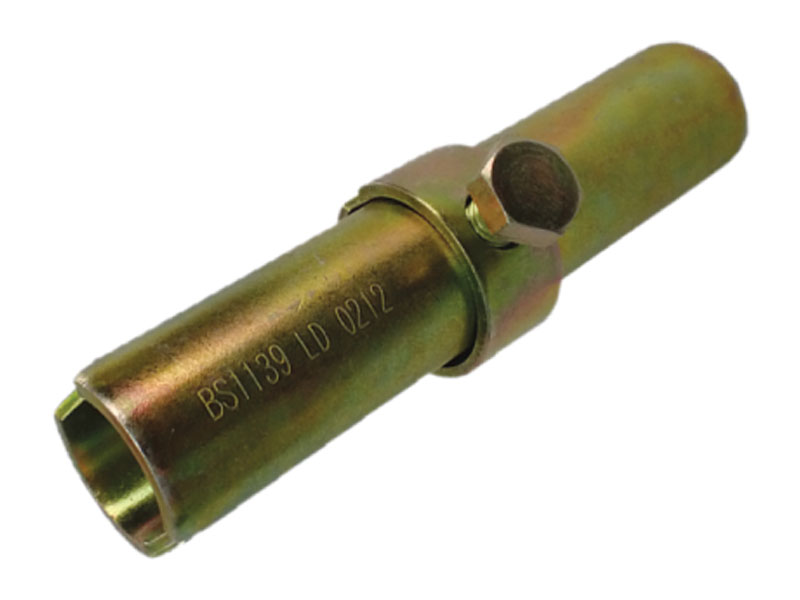

Inner Joint Pin

This fitting is for vertical handrail application. Operates by being inserted internally and expand to apply grip to internal walls of tubes.

Specification
  • Size: 48.3 mm

  • Standard: BS1139 / AS1576.2-91

  • Finishing: Zinc Plated / Gold Passivated

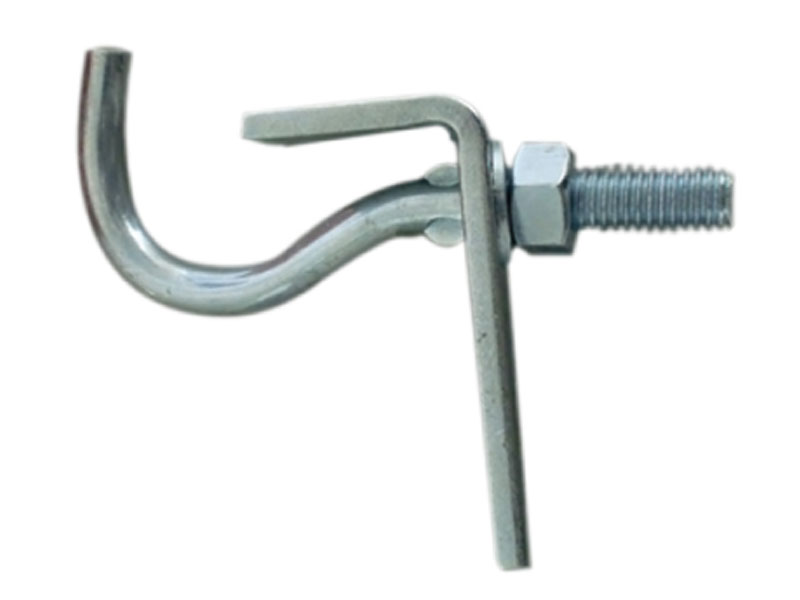

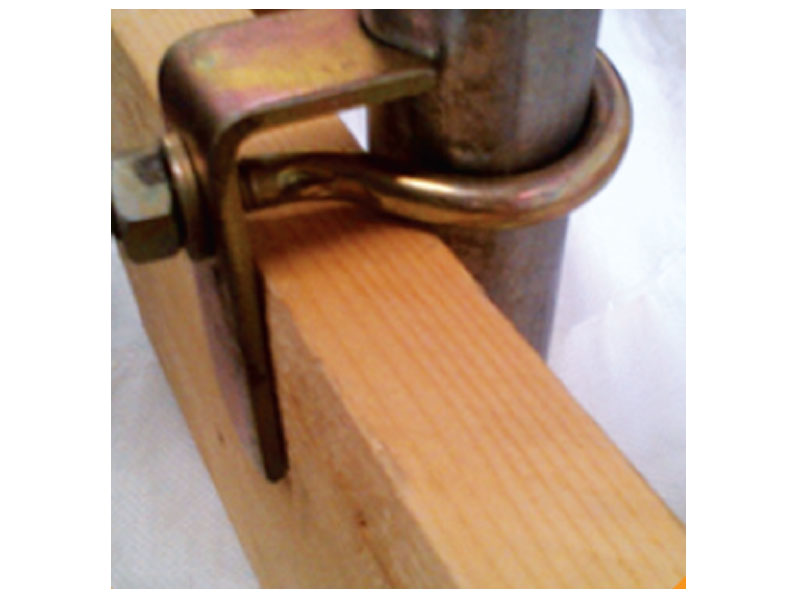

Toe Board Clamp

A specially designed fitting for securely fixing and retaining the toe board in position. A hook simply locates into the scaffold standard and when tightened the plates grips the tube and tighten the board, resisting lateral and upward movement.

Specification
  • Standard: EN74 / BS1139/ AS1576.2-91

  • Finishing: Zinc Plated / Gold Passivated

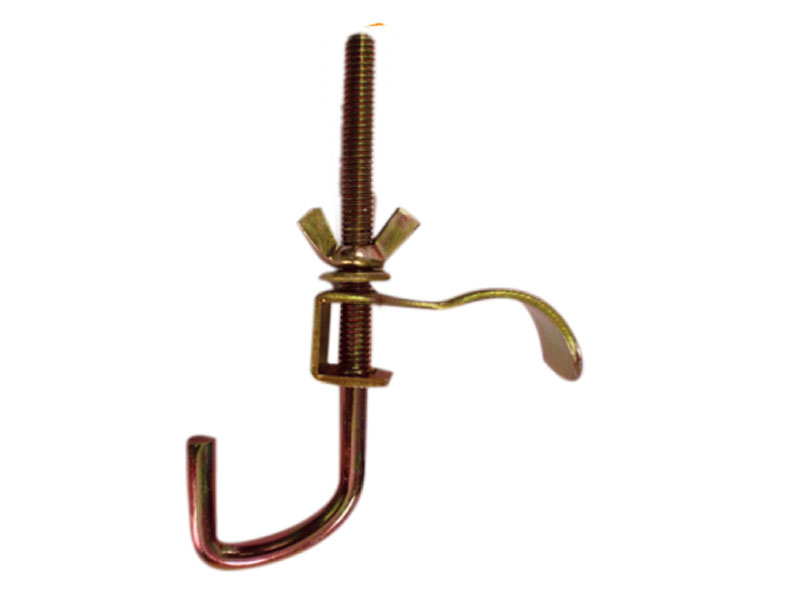

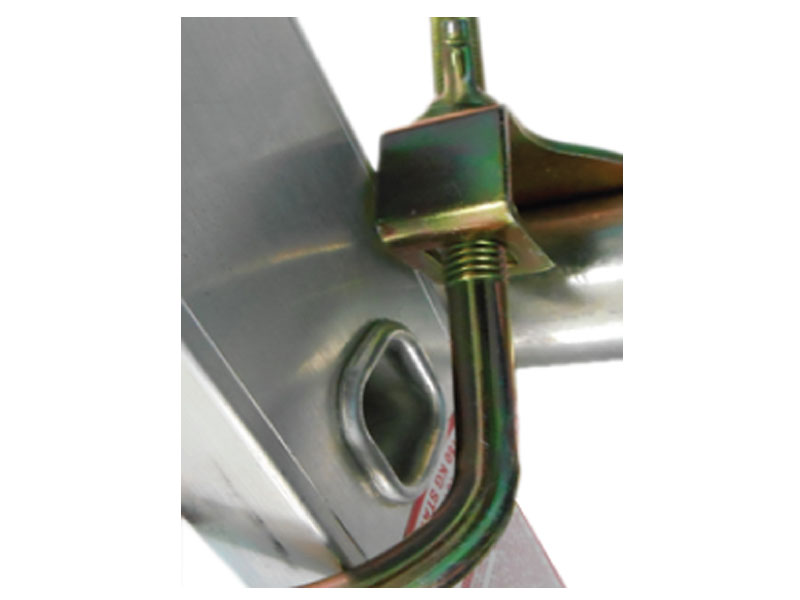

Pressed Steel Ladder Clamp

Safely and securely clamps a ladder to a scaffold tube. Used in pairs to ensure that a ladder does not slip or lean.

Specification
  • Standard: EN74

  • Finishing: Zinc Plated / Gold Passivated

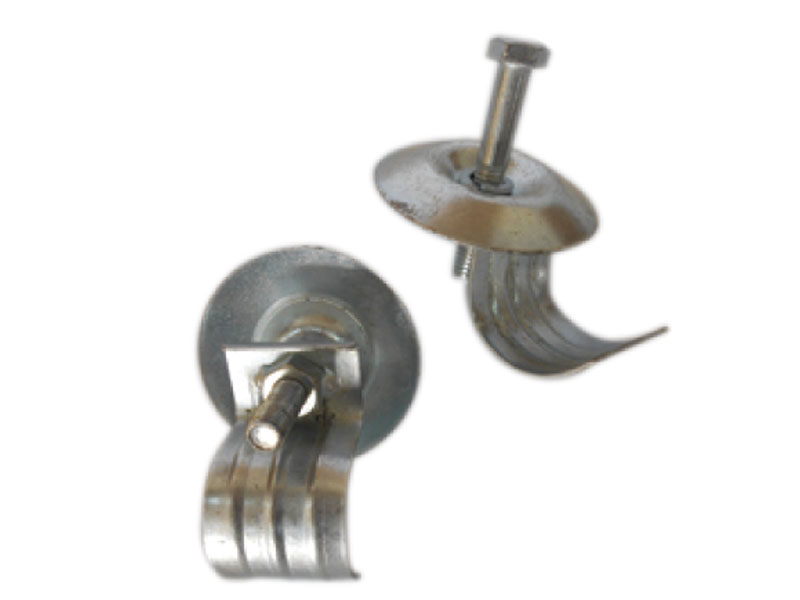

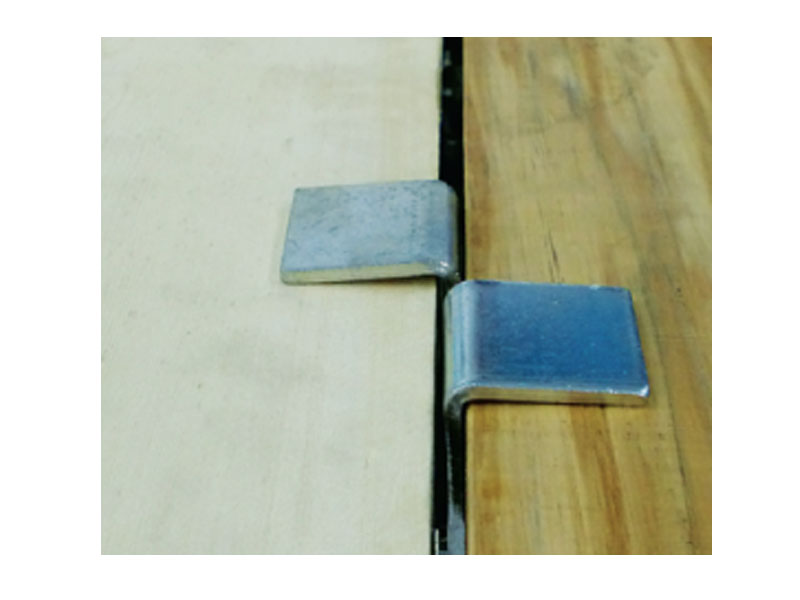

Limpet Clamp

For securing timber / metal or other scaffold decks. It eliminates the use of steel wires which causes safety hazard and also housekeeping issue. It is also cost effective.

Specification
  • Standard: BS1139

  • Finishing: Zinc Plated / Gold Passivated

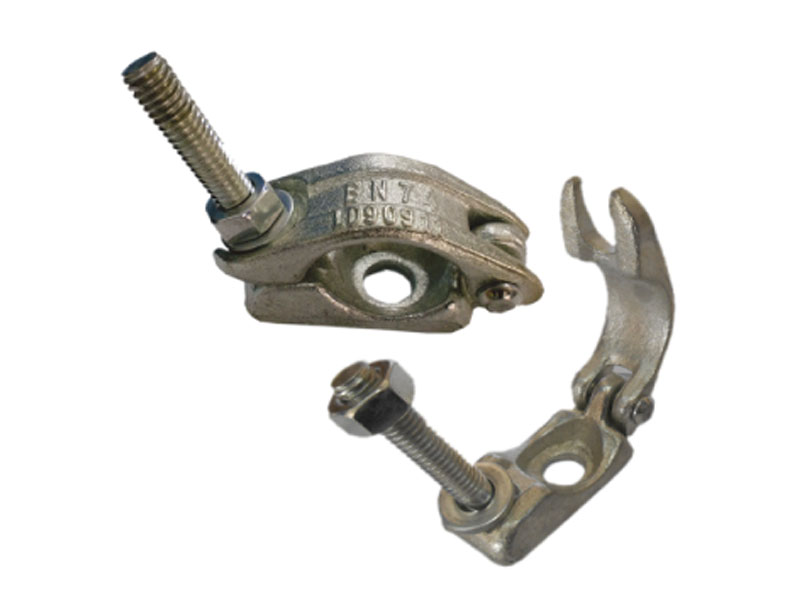

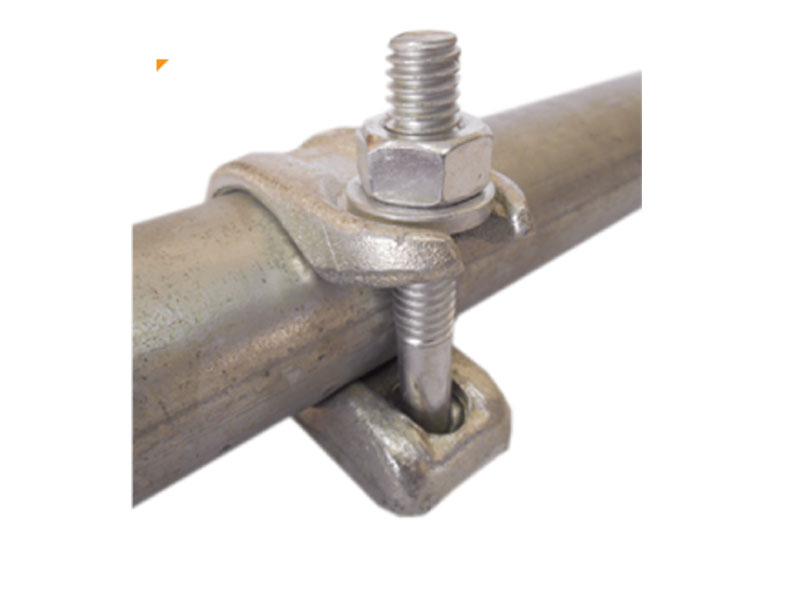

Drop Forged Half Coupler

This scaffold fitting is used to hold tubes for non-load bearing purpose.

Specification
  • Size: 48.3 mm

  • Standard: EN74

  • Finishing: Zinc Plated

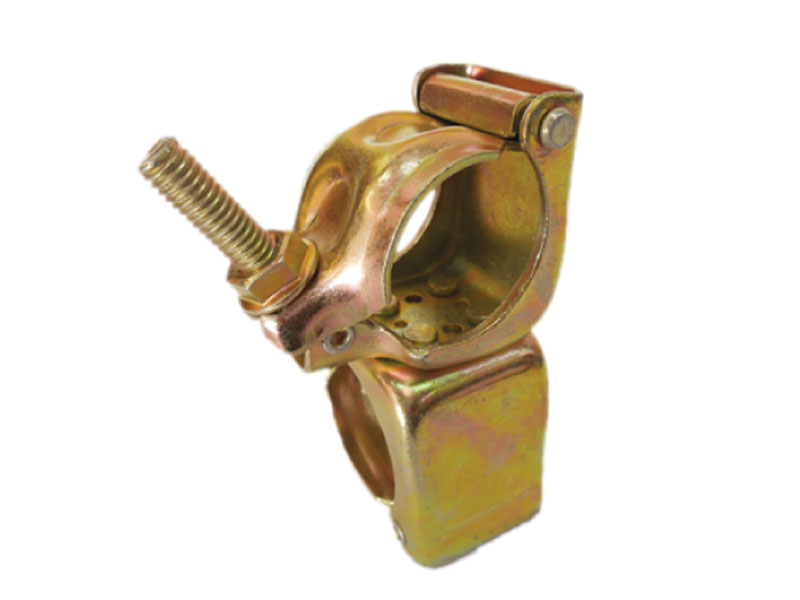

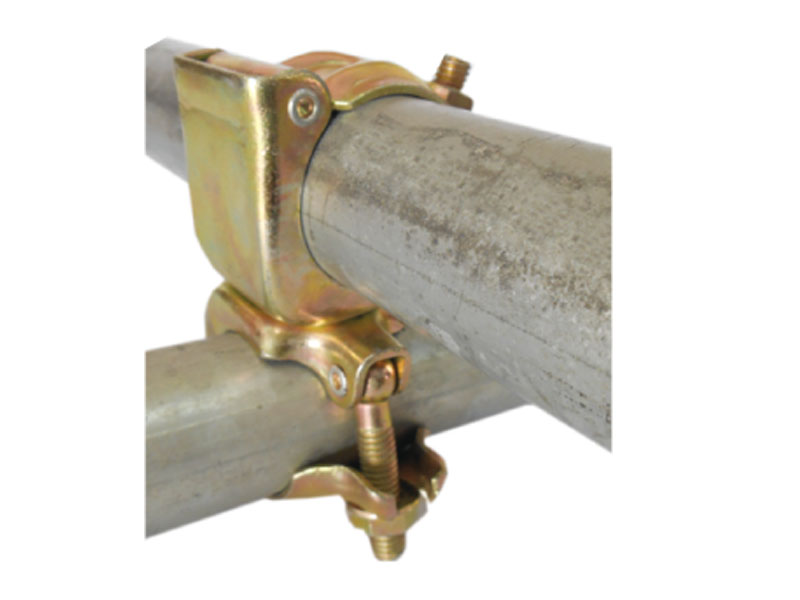

JIS Pressed Double Coupler

This scaffold fitting connects two scaffold tubes at right angle. Precision made centres or fitting’s body ensure a 90 degree connection.

Specification
  • Size: 48.3 mm X 48.3 mm

  • Standard: JIS Standard

  • Finishing: Gold Passivated

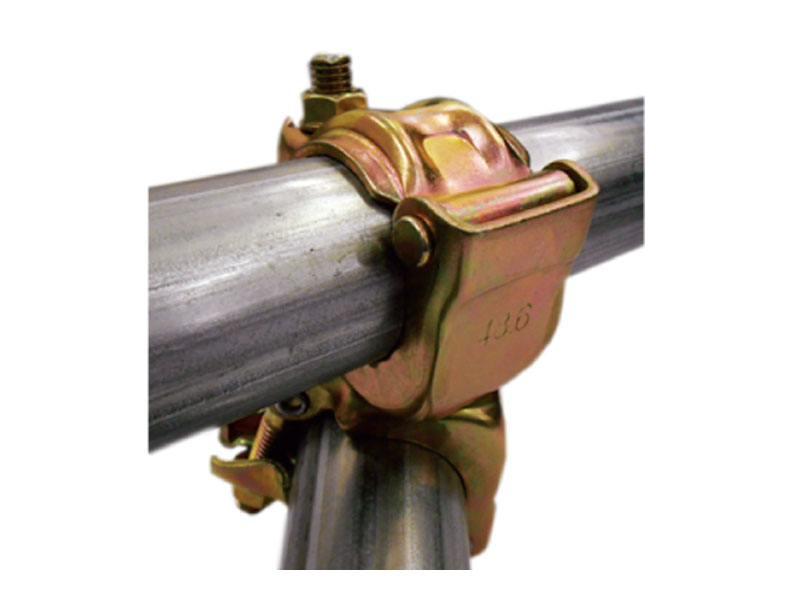

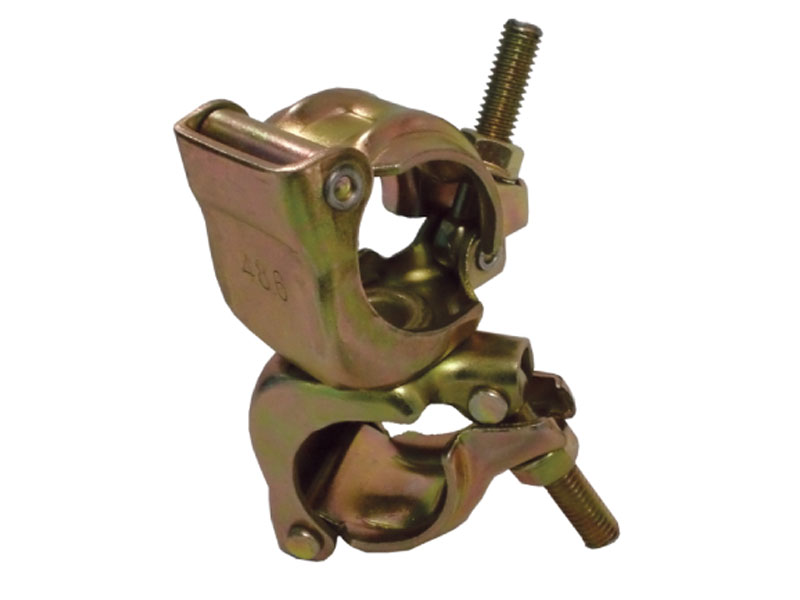

JIS Pressed Swivel Coupler

This scaffold fitting connects two scaffold tubes at any angle to provide a ledger brace, façade or similar bracing to scaffold structure.

Specification
  • Size : 48.3 mm x 60 mm

  • Standard: JIS Standard

  • Finishing: Gold Passivated

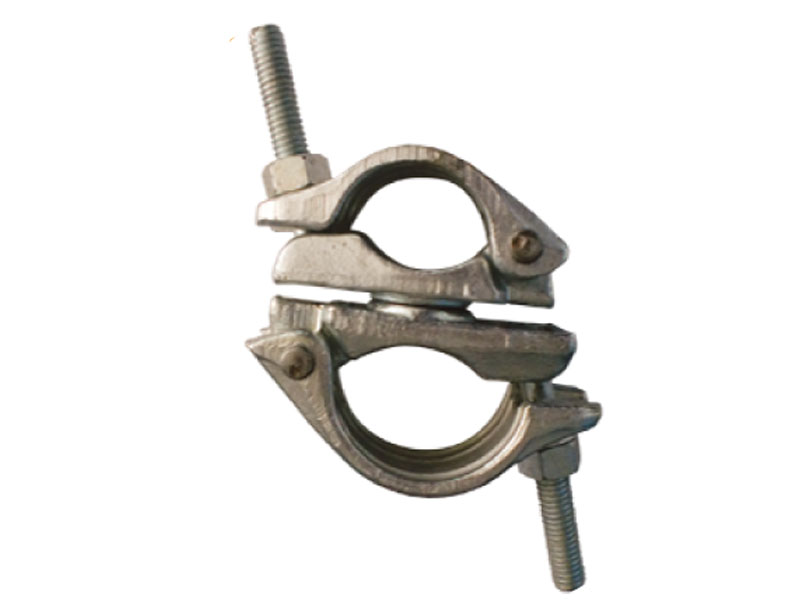

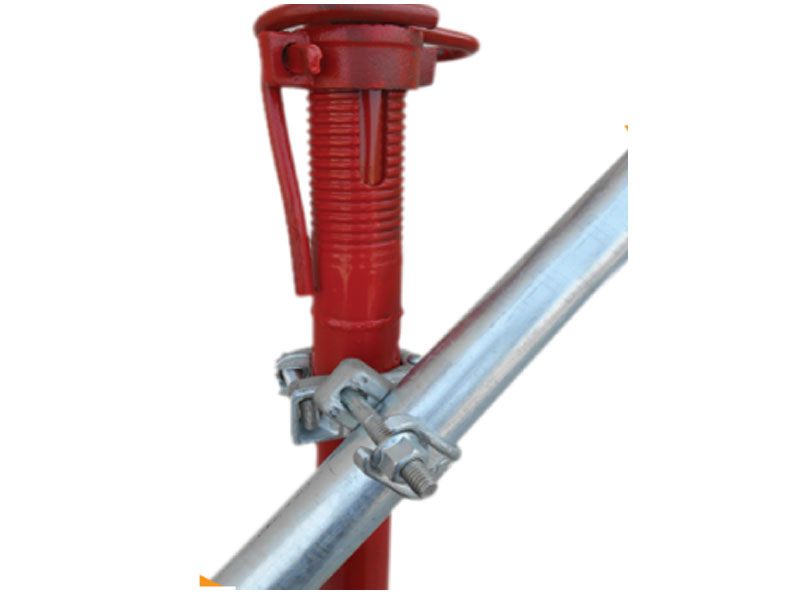

Drop Forged Combination / Prop Coupler

This scaffolding connect a scaffold tube at right angle / any angle to props outer. It is used when lacing a line of support props together. Available in fix and swivel type.

Specification
  • Size: 48.3 mm

  • Standard: EN74

  • Finishing: Zinc Plated / Hot Dipped Galvanized
